sftp ​

SFTP (SSH File Transfer Protocol) is a secure file transfer protocol that runs over the SSH protocol. It provides a secure way to transfer files between a local and a remote computer.

Bruin supports sftp as a source for Ingestr assets, and you can use it to ingest data from sftp into your data warehouse.

In order to set up sftp connection, you need to add a configuration item in the .bruin.yml file and in asset file. You need username, password, host, port of sftp server.

Follow the steps below to correctly set up sftp as a data source and run ingestion.

Step 1: Add a connection to .bruin.yml file ​

To connect to sftp, you need to add a configuration item to the connections section of the .bruin.yml file. This configuration must comply with the following schema:

yaml
connections:
    sftp:
        - name: sftp
          username: user_1
          password: pass-1234
          host: localhost
          port: 22
  • username: The username for the SFTP server.
  • password: The password for the SFTP server.
  • host: The hostname or IP address of the SFTP server.
  • port: The port number of the SFTP server.

Step 2: Create an asset file for data ingestion ​

To ingest data from sftp, you need to create an asset configuration file. This file defines the data flow from the source to the destination. Create a YAML file (e.g., sftp_ingestion.yml) inside the assets folder and add the following content:

yaml
name: public.sftp
type: ingestr
connection: neon

parameters:
  source_connection: sftp
  source_table: 'users.csv'

  destination: postgres
  • name: The name of the asset.
  • type: Specifies the type of the asset. Set this to ingestr to use the ingestr data pipeline.
  • connection: This is the destination connection, which defines where the data should be stored. For example: "postgres" indicates that the ingested data will be stored in a PostgreSQL database.
  • source_connection: The name of the sftp connection defined in .bruin.yml.
  • source_table: The source-table specifies /path/to/directory. The base directory on the server where bruin should start looking for files.

Step 3: Run asset to ingest data ​

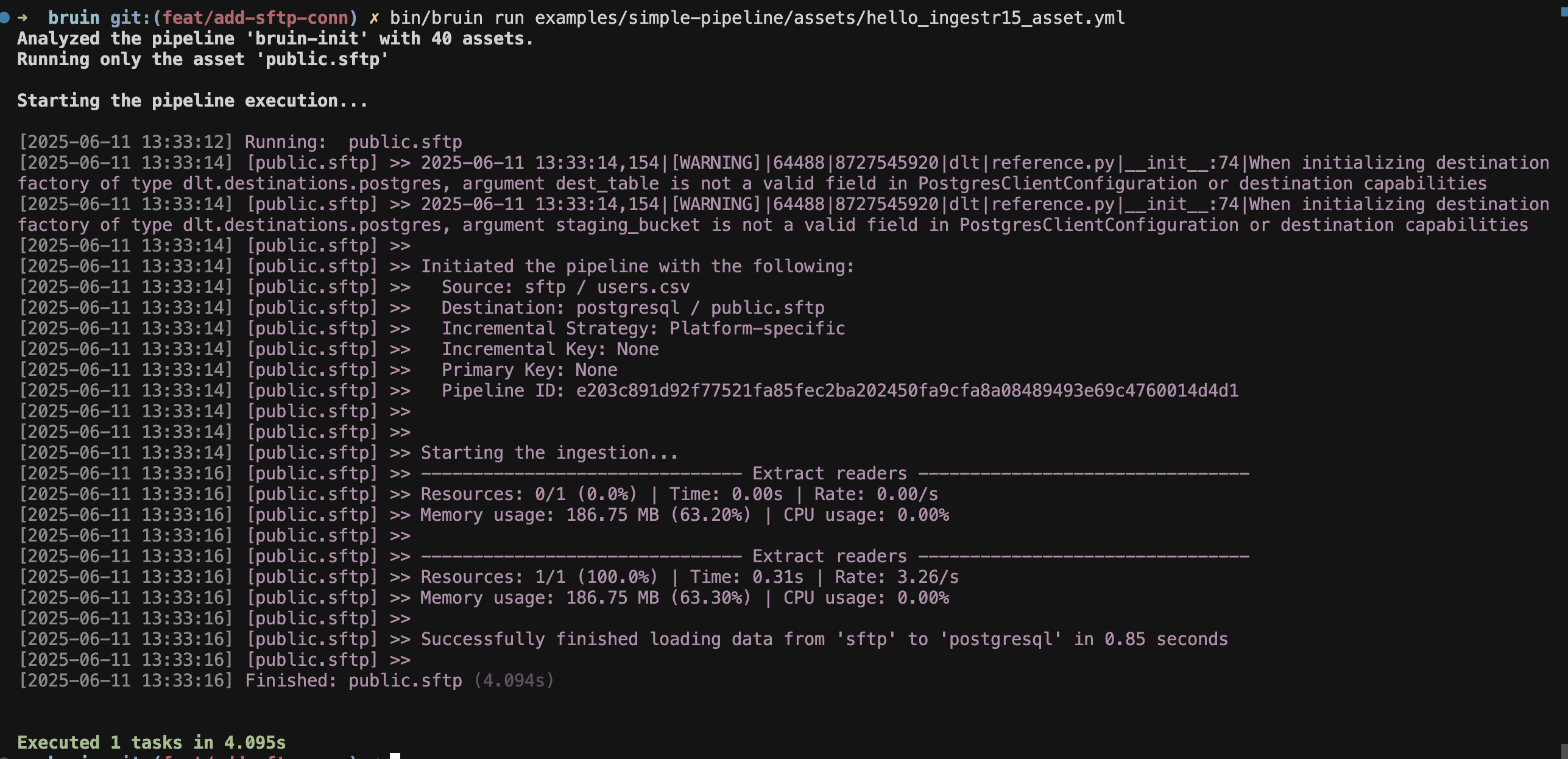

bruin run assets/sftp_ingestion.yml

As a result of this command, Bruin will ingest data from the given sftp table into your Postgres database.
