Editor Experience ​

These in-editor features appear automatically based on file context or environment setup, helping you take quick action without leaving the editor.

CLI Installation Prompt ​

If the Bruin CLI is not installed, the extension helps you get set up with minimal friction.

  • Trigger Condition

    • Triggered when you click the Render button and the CLI is missing.

  • How It Works

    • An alert is shown in the side panel.
    • A "Install CLI" button allows you to install the CLI immediately.

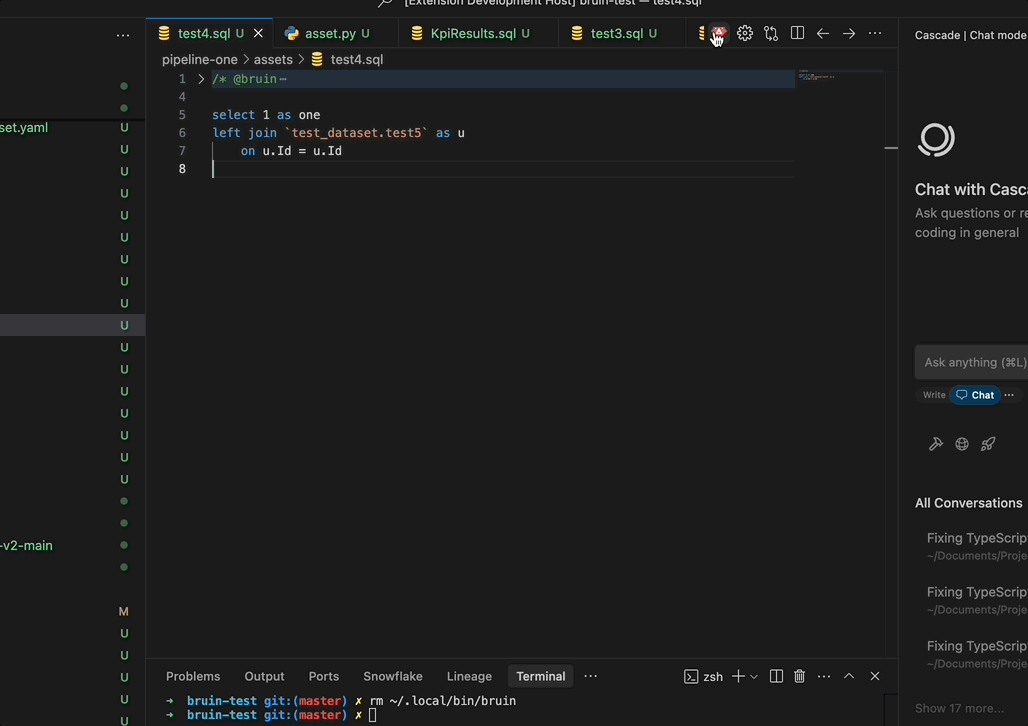

Install Bruin CLI

File Conversion ​

When you open a file that isn't yet a Bruin asset but is eligible for conversion, the extension displays an alert offering a conversion option.

  • Eligible File Types:

    • .sql and .py: Converted using the patch-asset command.
    • .yml: Converted by renaming to *.asset.yml.

  • How It Works:

    • An alert appears when an eligible file is opened.
    • A "Convert to Asset" button is provided to initiate the conversion directly.

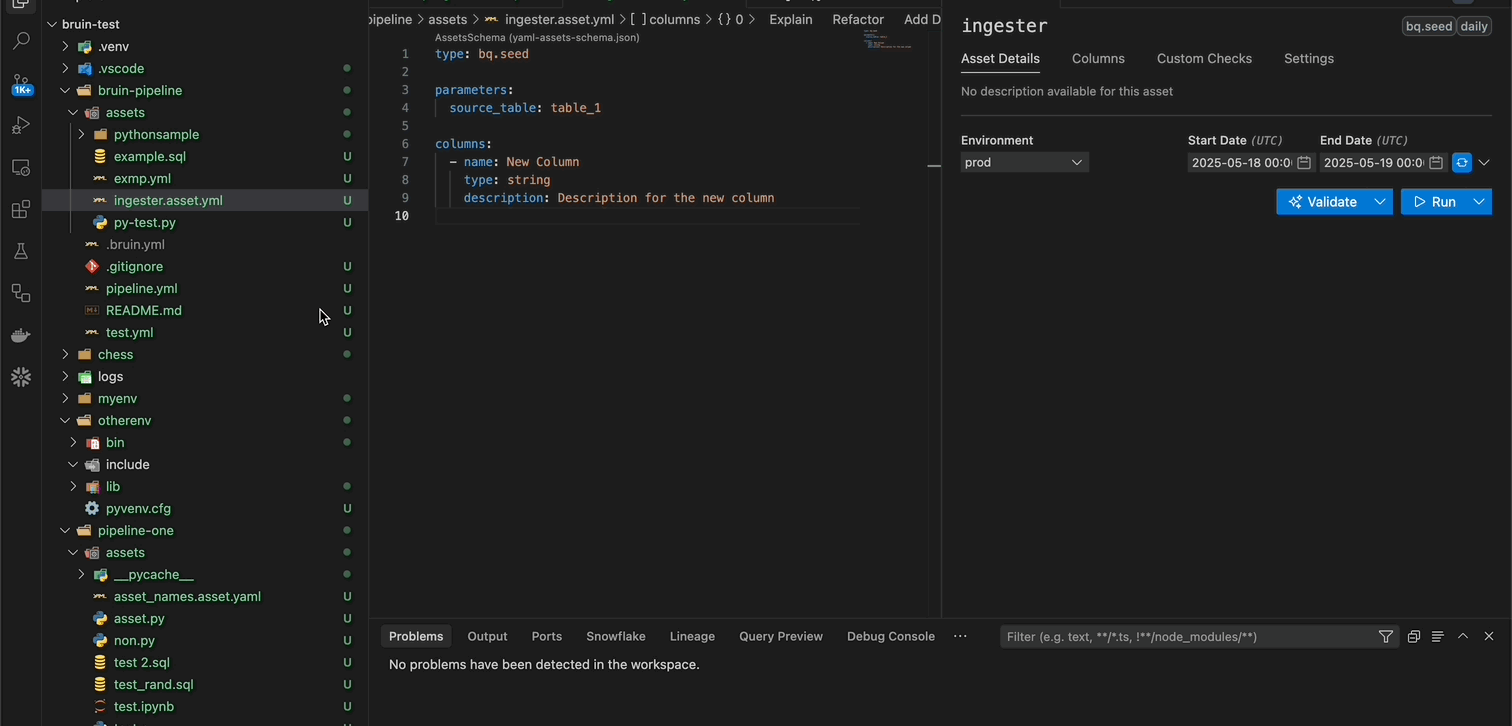

    Convert file to Bruin asset

Query Preview CodeLens ​

The extension offers an inline "Preview" button, leveraging CodeLens functionality, which appears above top-level queries in your SQL files. This feature provides a direct access to query previews from within the editor.

  • Functionality
    • The "Preview" button is automatically displayed above each top-level query in your SQL files.
    • Clicking the button initiates query execution, displaying the results in the Query Preview Panel within the current tab.
    • This feature replicates the functionality of the Query Preview Panel.
  • Subquery Functionality
    • When a subquery is selected and the "Preview" button is clicked, the results of the subquery are displayed.

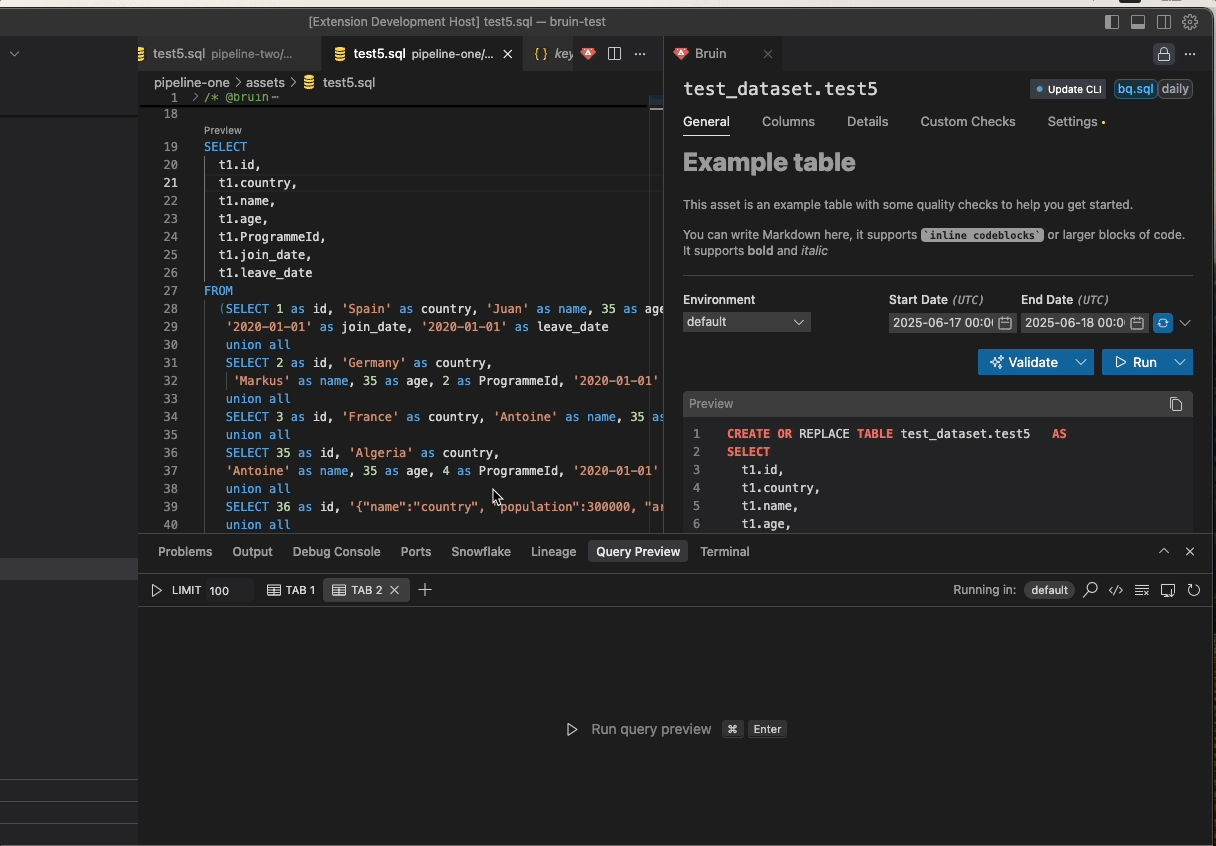

CodeLens Preview Button

Language Server Protocol (LSP) Features ​

The extension provides intelligent autocomplete and validation for Bruin asset files through Language Server Protocol integration.

Autocomplete Features ​

  • Materialization Completions: Suggests materialization types (table, view, none) and strategies
  • Column Suggestions: Suggests existing column names for partitioning and clustering
  • Dependency Completions: Suggests pipeline assets from your current pipeline for dependencies
  • Asset Properties: Autocomplete for asset structure and YAML formatting
  • Context-Aware: Shows relevant suggestions based on your current position in the file

Validation Features ​

  • Real-time Validation: Checks asset structure and required fields as you type
  • Error Highlighting: Highlights problematic code sections
  • Strategy Validation: Validates fields based on your chosen materialization strategy

Smart Features ​

  • Section Detection: Identifies when you're in materialization, dependencies, or other sections
  • Indentation Help: Validates proper YAML indentation
  • Descriptive Help: Provides detailed descriptions for each completion option
  • Dependency Navigation: Dependencies appear as clickable links (underlined)
    • Hover shows tooltip with "Go to [dependency_name]"
    • Clicking opens the dependency file in the editor
